MP40 Manufacturers and Markings

There were three main companies manufacturing the MP40 for the Heeres Waffenamt (Army Armament): Erma, Steyr and Haenel. Steyr manufactured the majority of the MP40 submachine guns and production continued at the company unitl 1944. Erma who also manufactured the MP38, produced the MP40 until 1943. The Haenel company already ceased production in 1942.

Those above mentioned prime contractors would utilize subcontractors to source some of their parts for final assembly. Those subcontractors were Merz Werke and Krupp. During the process at the subcontractor level all parts were marked with a unique letter code identifying the subcontractor. Inspectors of the Army Acceptance Organization (Heeres- abnahmestelle) would additionally stamp each parts for accuracy with their unique mark.

Finally shipped to the prime contractor where the parts would be assembled and fitted into one unique gun, letter code markings for the prime contractor would be applied besides a serial number and lastly for final inspection Heeres Waffenamt-marks. The reason behind this time consuming process was the fact that tolerances were very tight in German machining and parts were not totally interchangeable between unique guns.

The prime serial number of a gun was placed on the left side of the receiver tube and the end cap of the trigger frame together with the year code (e.g. "40" for 1940)



Prime Contractor Marks:

Erfurter Maschinenfabrik B. Geipel GmbH (ERMA), Erfurt: early code "27", late code "ayf" ERMA early 27 code ERMA late ayf code

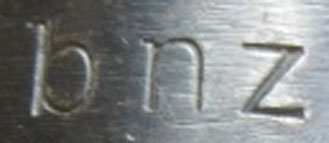

Steyr Daimler Puch, A.G. Werk, Steyr, Austria: early code "660", late code "bnz Steyr early 660 code Steyr late bnz code
C.G. Haenel, Waffen- u. Fahrradfabrik, Suhl: early code "122", late code "fxo" Haenel early 122 code Haenel late fxo code



Subcontractor parts and subassembly marks:

Gebrueder Merz, Merz Werk, Frankfurter Main: "cos"

Merz cos subassembly mark

National Krupp Registrierkassen, GmbH, Berlin: "cnd"

Krupp cnd subassembly mark

Steyr-Daimler Puch AG Werk Graz, Austria: "kur"

Steyr-Daimler Puch kur subassembly mark



Waffenamt marks:

Prime Contractors:

Erma Waffenamt mark Eagle over 280

Erma: Eagle over 280

Steyr Waffenamt mark Eagle over 623

Steyr: Eagle over 623

Haenel Waffenamt mark Eagle over 37

Haenel: Eagle over 37

Subcontractors:

Merz Waffenamt mark WaA44

Merz Werk: WaA44

Krupp Waffenamt mark WaA254

Krupp: WaA254

Steyr Waffenamt mark WaA815

Steyr Warsaw: WaA815



Serial Numbers:

Alpha numeric patterns were used for the serial numbers. The serial number usually consist of four digits or less and a small case letter. The first sequence of numbers start from 0001 to 9999 followed by the second sequence from 0001a to 9999a. The third sequence would end in b, the third in c and so on. Every year this sequence would repeat itself.

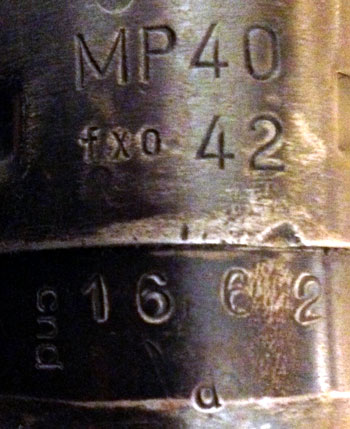

MP40 made in 1940 by Haenel using subcontractor parts from Krupp

Above example with serial number 41662 would be an MP40 made in 1942 by Haenel using subcontractor parts from Krupp.

Production Figures

A total of 40,576 MP38 submachine guns were produced and 869,792 MP40s.

Branch 1938 1939 1940 1941 1942 1943 1944 1945
Army 2,011 5,360 96,396 139,681 152,681 220,572 74,564 189
Air Force 0 0 18,500 96,400 64,300 9,973 6,244 0
Navy 0 0 1,400 3,750 12,500 3,766 2,081 0
SS 5,944
Intelligence 312
Financial Ministry 15
